什么是按鍵凸起？

按鍵凸起是用壓鼓機將面膜層上的鍵體區域壓起。此方法依據材料的自然特性和凸凹特性，有嚴格的溫度和壓力要求。

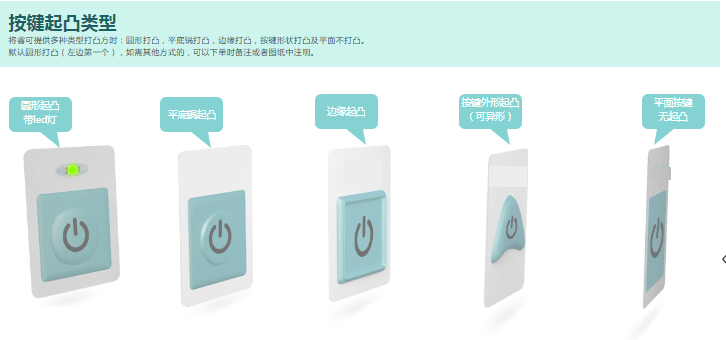

基本形式如下：

（1）框線凸起：開關邊緣凸起的時候采用。

（2）平面凸起：整個開關都高于面板表面時采用。

（3）球凸：用于加工球形按鍵。

（4）框線凸起+球凸：不常用。

  有哪些優點：

（1）增進了薄膜開關外觀的裝飾效果。

（2）操作者的觸覺比較敏感。

（3）準確給定鍵體的范圍。

（4）提高辨認速度。

  重要的設計考慮因素有哪些：

（1）需要專用的模具機加工。

（2）用力過大會減少機械壽命（對于聚碳酸酯面膜來說機械壽命應能操作不少于10萬次）。

（3）凸起的聚脂的極限溫度為50℃。

（4）凸起高度應不超過材料厚度的1.5倍。

（5）平面凸起應距邊緣最少3mm或 5mm。

（6）框線凸起的按鍵距離邊緣最少5mm。

What are the keys raised?

The key is raised by pressing the drum machine will mask layer on the key body region pressure. According to the nature and characteristics of convex and concave material, there are strict requirements for temperature and pressure.

The basic form is as follows:

(1): when the switch line raised by convex edge.

(2): the whole plane uplift are higher than the surface of the panel switch.

(3): convex ball for processing spherical button.

(4) frame line raised + ball convex: not commonly used.

What are the advantages?

(1) to enhance the decorative effect of the appearance of the film switch.

(2) the operator's sense of touch is more sensitive.

(3) the exact range of the given key.

(4) increase the speed of identification.

What are the important design considerations?

(1) die machining special.

(2) reduce the life of the mechanical force over the general assembly (for polycarbonate mask mechanical life should be able to operate for not less than 100 thousand times).

(3) raised the limit temperature of polyester is 50 DEG C.

(4) the bulge height should be 1.5 times less than the thickness of the material.

(5) plane uplift from the edge of at least 3mm or 5mm.

(6) the frame line convex button from the edge of at least 5mm.
